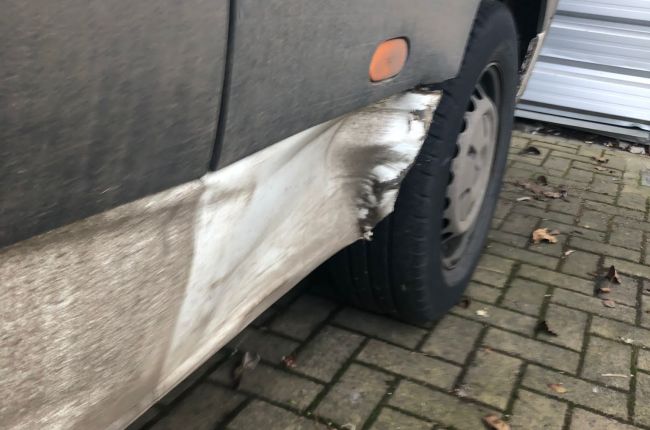

Mercedes Body & Dent Repair Nottingham By Scratchmaster - Mercedes Sprinter Body Repair
Location: Nottingham
Mercedes Sprinter Body Repair carried out by Scratchmaster Nottingham finished on 23rd February 2022.
Click Here
Using our POWER TEC Evo Welder, standard puller and Line puller, the door of this Mercedes Sprinter was pulled into position.
You can see our keys welded onto the panel and the bar through ready to be pulled with the claw puller.
The lower panel was cut away and replaced with a new part welded into place.
Just a light skim of upol DOLPHIN body filler and primed with Roberlo ME1 primer.
Painted with LECHLER Top Coat.
-
Citroen Car Body Repair Nottingham
Citroen Car Body Repair Nottingham
Click Here

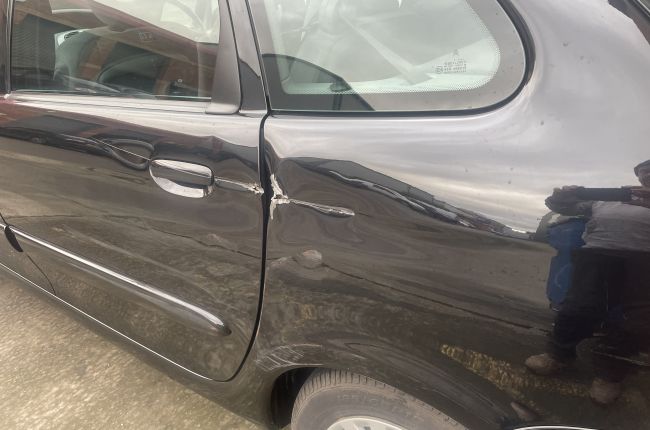

Fairly common type of damage to this Citroen where the car has been reversed back along a gate hinge.
Ideally needed a replacement 1/4 panel stitching into place but our customer wished to avoid the insurance route so we repaired the panel best as possible with a good result.
Using our POWERTEC dent pulling system our repairer Jason pulled the panels back into shape before repairing the steel.
Under Jasons watch, our apprentice, Harvey painted the panels before applying three coats of protective lacquer.
Very well done Harvey you did a fantastic job on your biggest paint job to date. -
Volvo Car Body Repair Nottingham - Volvo XC90 Car Body & Dent Repair Nottingham

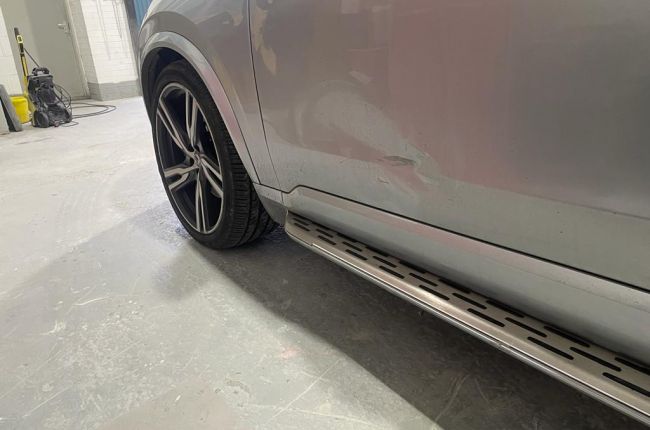

Volvo XC90 D5 R Design AWD
Click Here
In Scratchmaster workshop w/c 7/02/22.
Repairs to near side doors using POWER TEC miracle System.
Paint removed from around the damaged area and the Miracle System is used to pull the damaged panel into shape.
Minimum car body filler used to finish the repair.
Prepared then painted using Syrox water based paint. Protected with 2-3 coats of high quality lacquer.
Flatted and polished with 3M detailing products. -

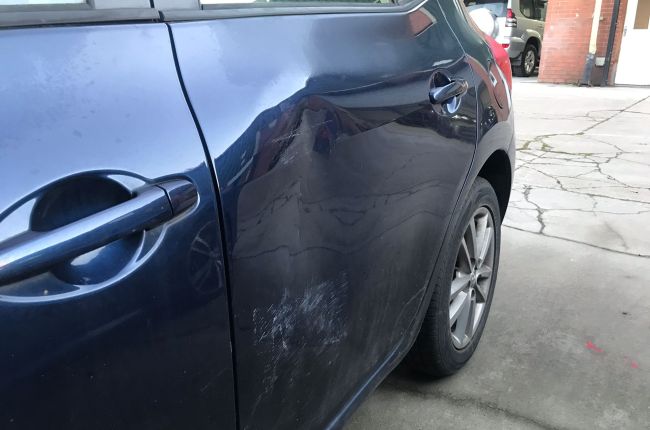

Toyota Car Body Repair In Nottingham - Auris Body and Paint Repair
Location: Scratchmaster Car Bodyshop Nottingham
This Toyota Auris came into our Body Repair Shop week commencing 13th December and was finished 18th December 2021.
Click Here
Ideally needing a replacement door but economically a repair was better for our customer.
The large dent was pulled into shape using our PowerTec steel panel puller and finished off with three fine skins of UPOL Dolphin car body filler.
Several coats of Syrox primer and baked.
After the primed repair area was flatted the Syrox water based colour was applied and then followed up with three coats of protective clear coat.
Baked, flatted and polished you can see the finished repair.
Well done to Jason who carried out the repair which wasn’t the easiest.
-
BMW Car Body Repair Nottingham
BMW Car Body Repair Nottingham
Click Here

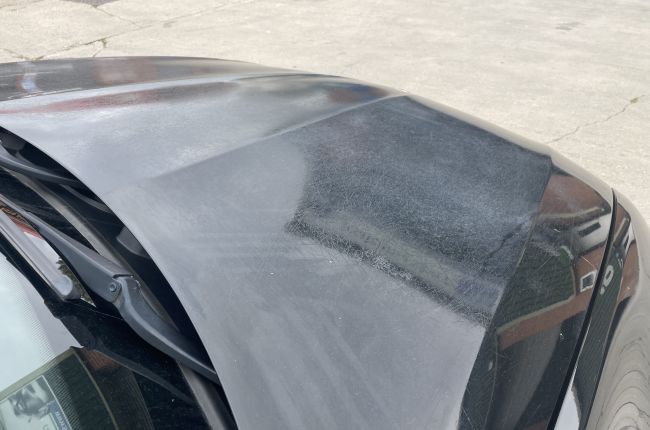

Defective paintwork on the bonnet of this BMW 3 Series.
Thoroughly stripped to bare metal then primed three times.
Baked on a warm cycle then flatted.
Cleaned with anti-static panel wipe then back into the oven. Painted and given three generous coats of protective clear coat.
Fitted back to car and looked good.
Products used during this repair:
Mirka 80g 180g 320g abrasive discs.
AXALTA Syrox Undercoat Sanding Surfacer.
Mirka 600g Goldflex Soft pads.
Performance Panel Wipe.
Performance Tack Rag.
Indasa 1” and 2” Adhesive Tape.
AXALTA Syrox Water Based Colour Basecoat.
AXALTA Syrox FLEX CLEAR.
3M 1500g abrasive film discs.
3M 3000g Trizact Disc.
ROAR CERAMIC CUT cutting compound
ROAR CERAMIC FINISH f... -
Citroen Car Body Repair Nottingham
Citroen Car Body Repair Nottingham
Click Here

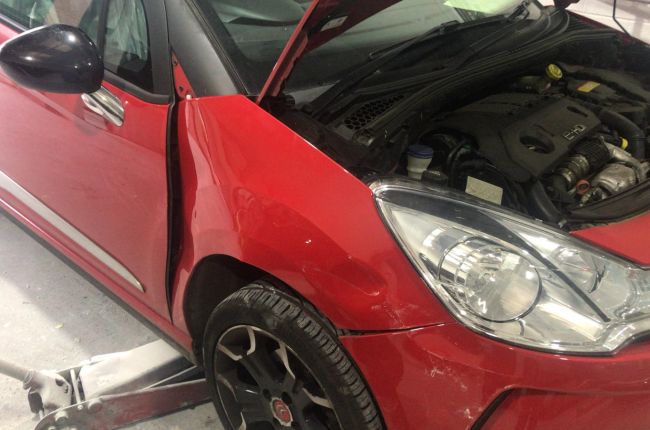

Citroen Ds3 into Scratchmaster with medium damage to off-side wing.
Wing removed and replaced with genuine Citroen panel.
New panel primed and painted using Syrox colour system products and fitted to car.
Door and bumper corner blended for colour matching purposes.
-

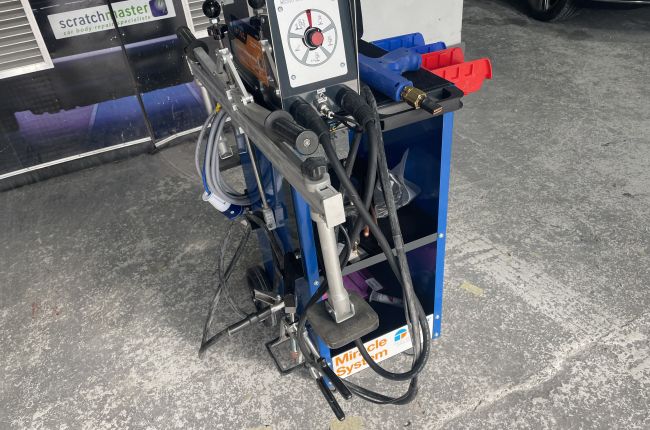

Power-TEC Dent Repair System In Nottingham
Scratchmaster have taken delivery of and are working with the latest Power-TEC Miracle System Dent Repair equipment.
Click Here
These high end Car Body Repair tools will enable us to carry on improving our repair techniques so we can continue to offer our customers the very best quality repairs to their vehicles.
Many thanks to a Steve Hough from Power-TEC who can be seen giving some training to our apprentice Harvey who did a fantastic job. Well done Harvey. -

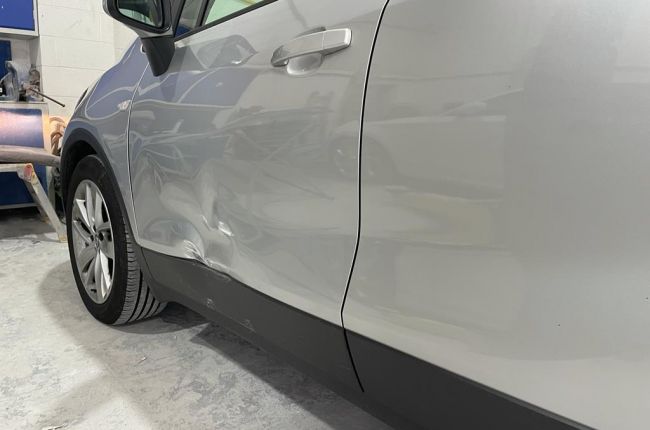

Vauxhall Mokka Car Body Repair Nottingham
Vauxhall Mokka Car Body Repair Nottingham:
Click Here
Passenger door badly damaged on this Vauxhall Mokka.
Our customer sourced their own used door and had it delivered directly to Scratchmaster but in Blue not silver.
We stripped the old door of the parts we needed to re-use, items such as door card, wiring loom, locking system etc.
The interior of the replacement used door was stripped and prepared for painting silver. When this was complete we hung the door and prepared all the exterior panels for paint.
Once fully painted all the fittings were put back and the car fully flatted and polished.
This way our customer was able to get a good quality repair to quite a bad damage without making an insurance claim and saving around £1000+.
-
Mercedes Car Body Repair Nottingham
Mercedes Car Body Repair Nottingham
Click Here
By Scratchmaster.

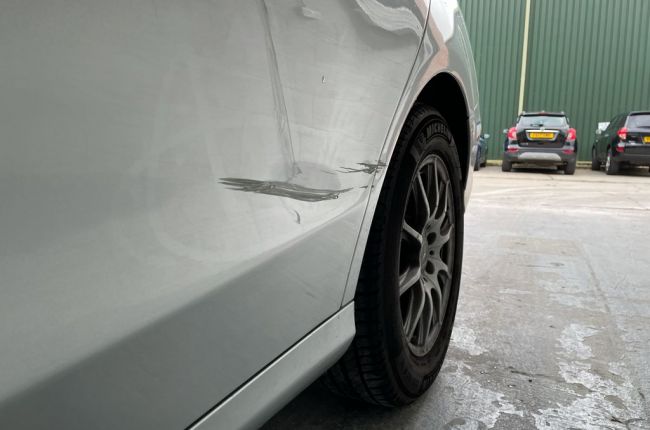

Very common quarter panel repair on this Mercedes C Class in Silver.
Caught on house gate post but repaired and painted to a high standard within three working days and at a price at which our customer thought was better than compromising his insurance no claims for. -
Skoda Car Body Repair Nottingham
Skoda Car Body Repair Nottingham
Click Here

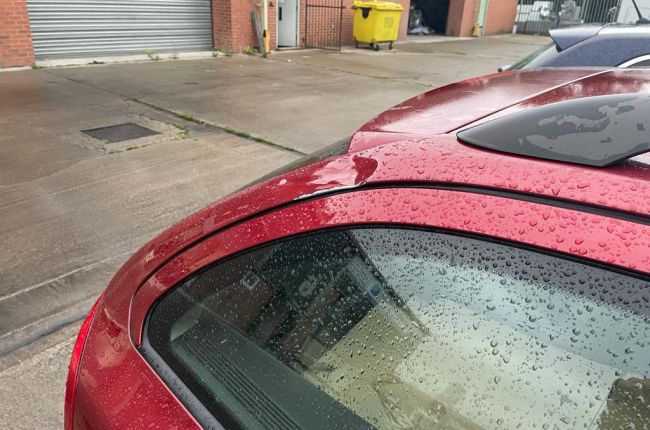

This Skoda has been struck on the 1/4 panel by a falling scaffolding tube narrowly avoiding the glass.
Another job for our Pro-Pull panel puller to gently pull back into shape the Skoda 1/4.
Thin skim of Dolphin Glaze to finish off before primer is applied.
Spectro camera to identify the exact colour match then painted and lacquered using Syrox system. -
Citroen Car Body Repair Nottingham
Citroen Car Body Repair Nottingham
Click Here

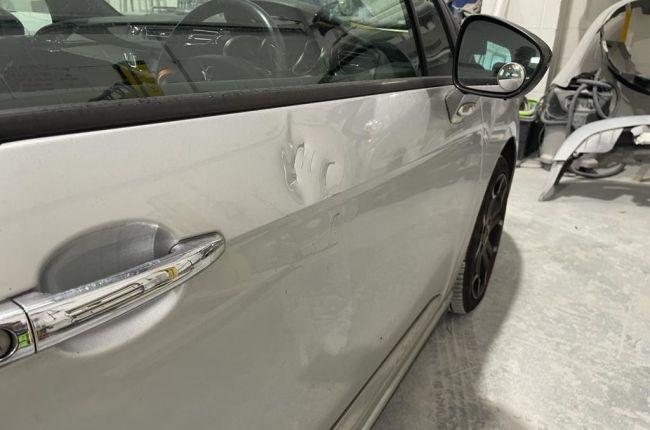

Unusual door damage to this Citroen C3 in silver.
Using a steel pulling system we had these dents pretty much sorted out without having to use much car body filler. A few studs welded around the dented area fixed this damage.
Thin skim of Dolphin Glaze to finish the body repair and then into the spray bay for paint and lacquer.
-
Volkswagen Crafter Commercial Body Repairs In Nottingham
Volkswagen Crafter Commercial Body Repairs In Nottingham by Scratchmaster.
Click Here

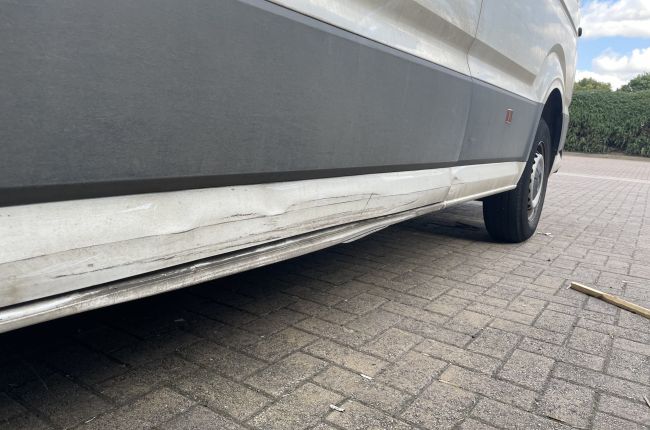

Surprisingly typical damage to the sill section around the sliding door area.
Not possible to repair this type of damage on this area of the vehicle so we need to cut away the sill and replace with a new sill section.
Our expert in this type of repair is Jason and you can see him cutting away the damaged sill on this Volkswagen Crafter.
A new section is supplied to us by Nottingham TPS and Jason gets busy welding the new sill into place.
After completing the Crafter sill repair to a high standard it’s over to Dean to sort the paint which he does really well.
After fitting a new rear light and a few cosmetic touch ups the Volkswagen is ready to take back to t... -
Ford Focus Car Body Repair
Ford Focus Car Body Repair
Click Here

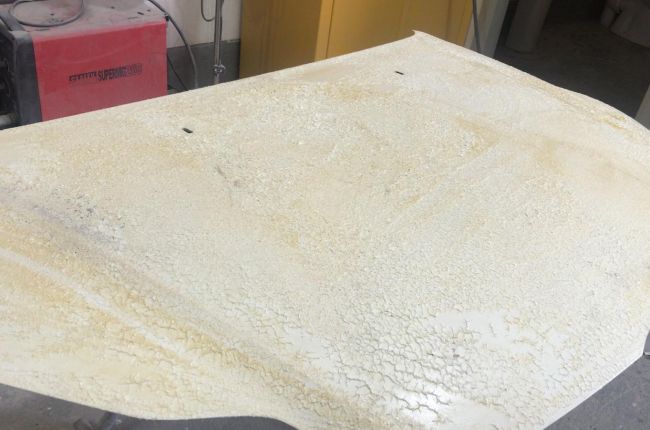

Ford Focus with paint damage to the bonnet.
An unknown chemical thrown onto our customers car which then ate deep into the cars paintwork.
We chemically stripped off all the remaining paint back to bare steel.
A chemical bar coat was applied to help prevent any further reactions before we put on several coats of new primer.
Once flatted and prep’d the bonnet was painted and colour faded into the wings to ensure a perfect colour match.
-
Nissan Juke Car Body Repairs
Nissan Juke Car Body Repairs in Nottingham by Scratchmaster.
Click Here

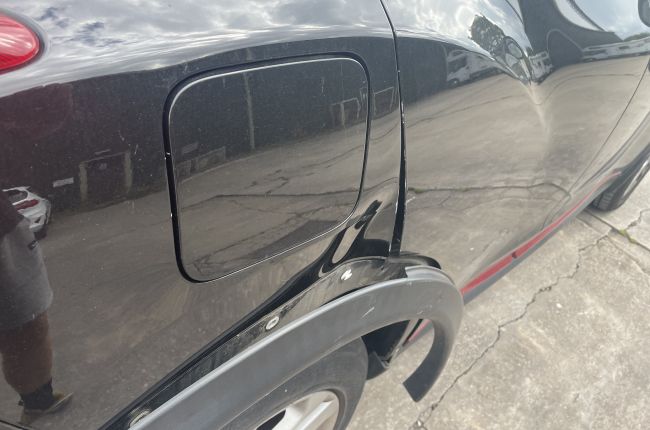

Nissan Juke in Midnight Black with damage caused by being reversed onto a post.
Pulled into shape using our Pro-Pull car dent fixing system and the repair finished off using minimum amount of car body filler.
Primed and painted with AXALTA system and lacquered with 3 coats Syrox car body clear coat.
Baked and polished. -
VW T6 Paint Repair
VW T6 Paint Repair.
Click Here
Having previously been repaired and painted elsewhere 18 months ago we had this T6 into the Scratchmaster workshop for some minor repairs but mostly for colour correction.
Our spectro camera returned six different colour variations on different panels that had been painted before.
Additionally several panels had been painted using old fashioned ‘top coat’ paint which had faded badly.
The VW panels were so many different shades of yellow that it was difficult choosing which to match to.
After 2 days of painting test cards and head scratching we decided on the colour variant and started preparing all the panels for paint.
Bumpers, trims, handles and bonnet etc all removed and painted off the vehicle.
Full day... -
Ford Ka Car Body Repair Nottingham
Ford Ka Car Body Repair Nottingham
Click Here
Ford Ka
2016
33'216 Miles
Midnight Black
Completed on 14/05/2021
Previously repaired/painted roof, bonnet and tailgate.
All previously repaired areas have reacted and the paint is literally falling off and what hadn't already fallen off needed taking off.
Roof in particular was very bad.
With all the previous repairs removed we re-repaired the roof, bonnet and tailgate.
Re-primed and left to stand for a few days to allow any solvents to evaporate.
Then flatted and painted with Syrox water based colour and given 2-3 coats of new lacquer.
We decided to air-dry this paint job given the previous poor quality materials that had been used to avoid any solvent issues.
Finally machine polished and it did...
